Mapping our land more clearly and colourfully
for better analysis and visualisation

Acknowledging Imagery Sources

NASA: Landsat

USGS: Landsat



USDA: NAIP


















For 48 Contiguous U.S. States: Unqiue state-level imagery mosaics at 1m-resolution (from the latest 2016, 2015, 2014 & 2013 growing seasons)

June 2017: Unique state-level imagery mosaics using 2016 NAIP series are currently under development.

May 2016 release and update: Easy-to-use state-level imagery mosaics are made possible with the comprehensive ortho aerial photos available from the USDA National Agriculture Imagery Program (NAIP) and through wider collaborations in acquisition, storage and processing. Instead of using hundreds of thousands of the original NAIP imagery tiles, the uniquely-processed state-level mosaics are being offered at 1m-resolution for 48 contiguous U.S. States. This imagery product features:

  • One state, one imagery mosaic – extremely easy to use and manage in GIS mapping software
  • Consistent 1m-resolution with the popular WGS 84 Web Mercator projection
  • See the big picture and the detail
  • Latest and complete NAIP imagery series from 2015, 2014 & 2013 seasons
  • ~180 Terabytes of processed data in raw binary and ~9.0 Terabytes in compressed JPEG2000 format
  • Complementary to the existing small-sized county-level mosaics
  • Natural color (RGB), color infrared (CIR), or NDVI color mosaics available
  • ...

This is a unique imagery product for potential clients (e.g. in basemaps production, precision agriculture, and terrain simulation) to save enormous time, resources and money; it can be readily and rapidly deployed in large-scale enterprise mapping projects.



NAIP state-level imagery mosics overview Summary

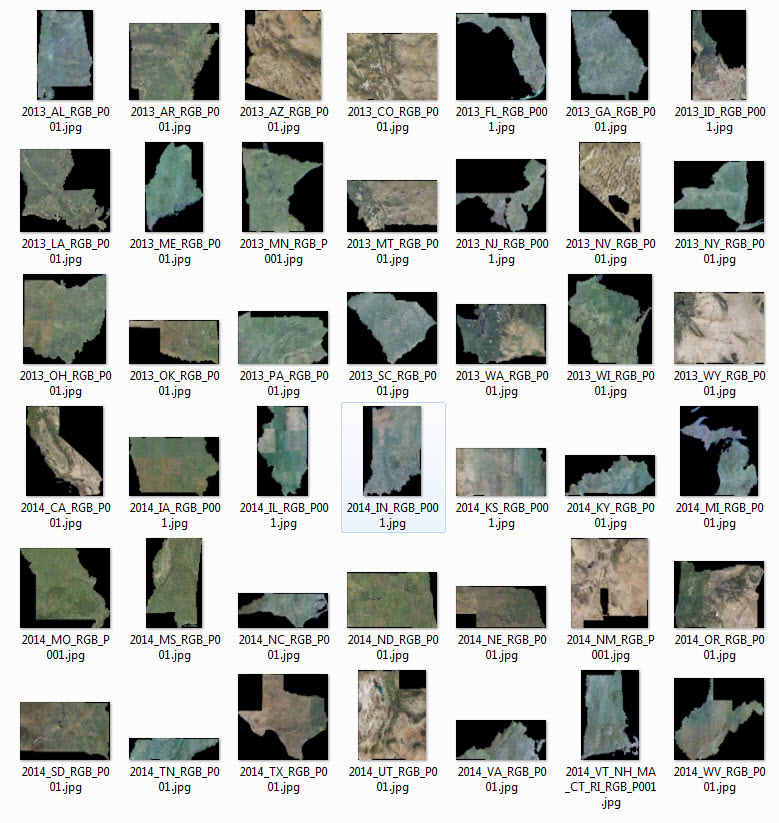

State mosaics RGB All statewide mosaics (natural color RGB) in the same projection (WGS 84 Web Mercator)
~90 Terabytes of processed data at 1m-resolution;
~4.0 Terabytes of compressed mosaics at 1m-resolution;
~230 Gigabytes of compressed mosaics at 5m-resolution.
State mosaics Natural color (RGB) mosaics by state (overviews were produced at 1km resolution; i.e. 1,000,000 - 1000, x 1,000 - times smaller than the 1m-resolution full mosaic)

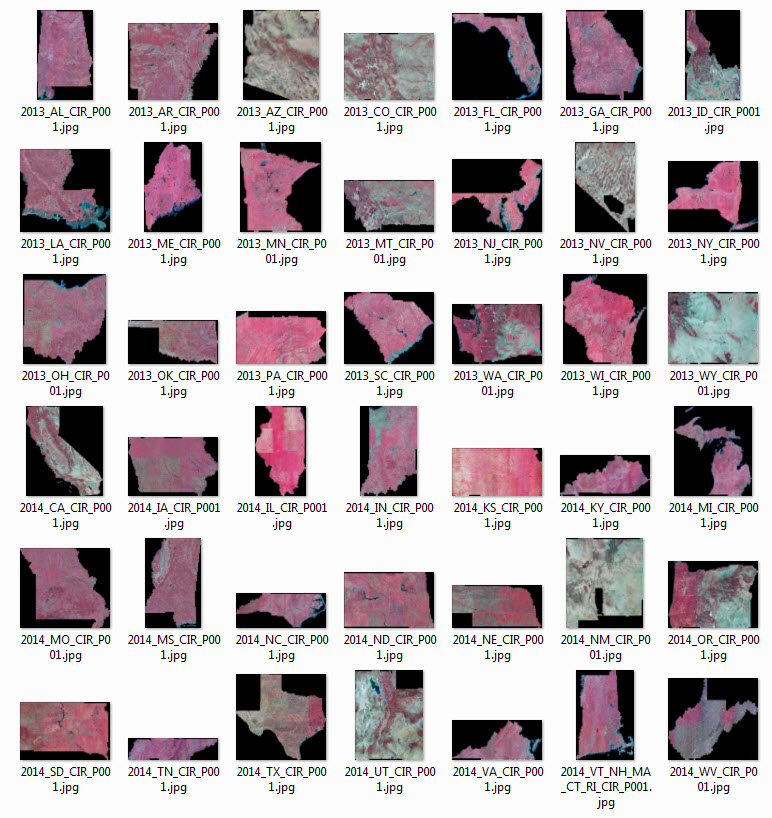

CIR state mosaics All statewide mosaics (color infrared) in the same projection (WGS 84 Web Mercator)
~90 Terabytes of processed data at 1m-resolution;
~5.0 Terabytes of compressed mosaics at 1m-resolution;
~275 Gigabytes of compressed mosaics at 5m-resolution.
State mosaics Color infrared (CIR) mosaics by state (overviews were produced at 1km resolution; i.e. 1,000,000 - 1,000 x 1,000 - times smaller than the 1m-resolution full mosaic)

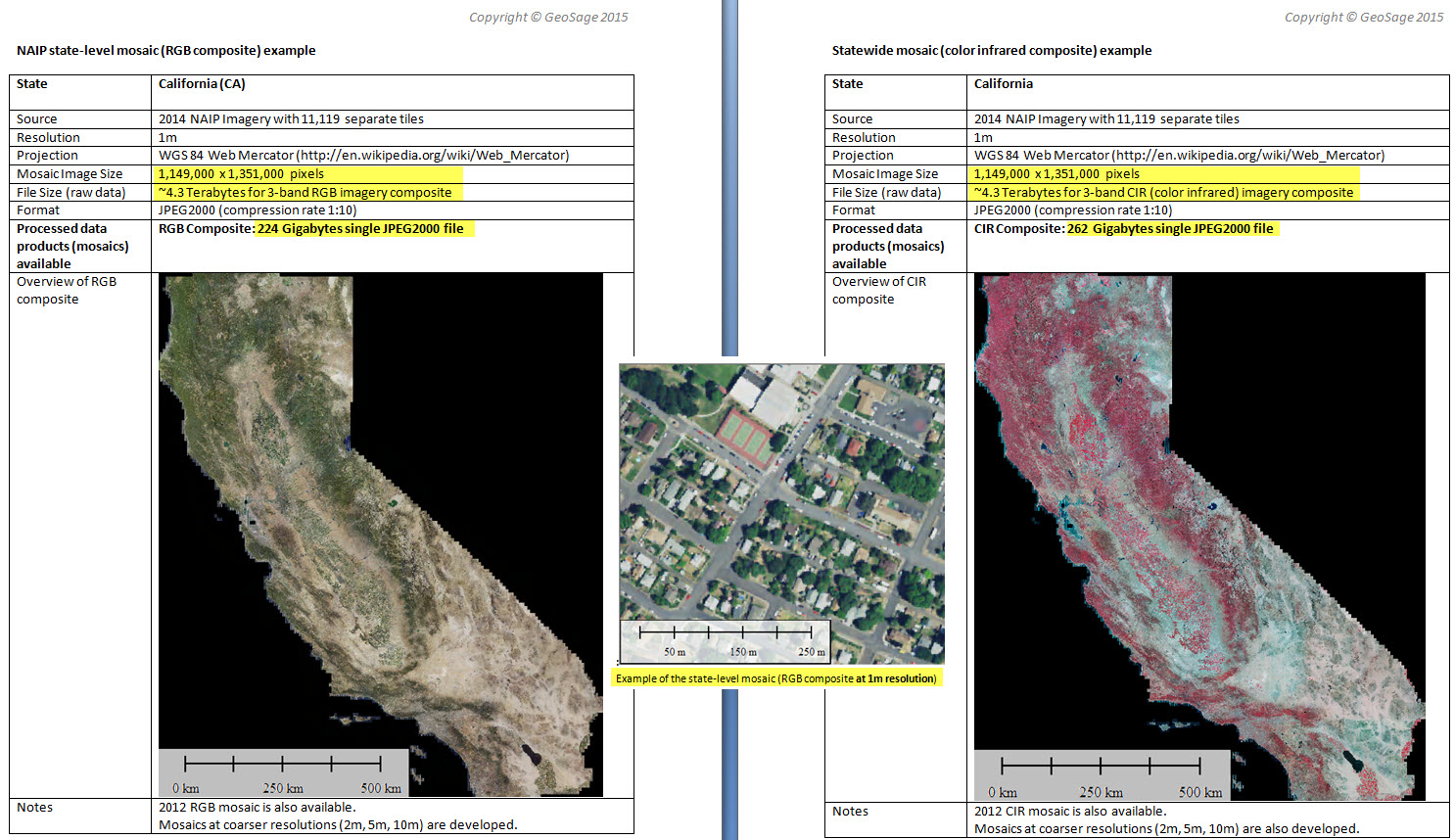

California: Example of the state-level imagery mosaics at 1m resolution

Comparing RGB mosaic with NDVI mosaic
